Details

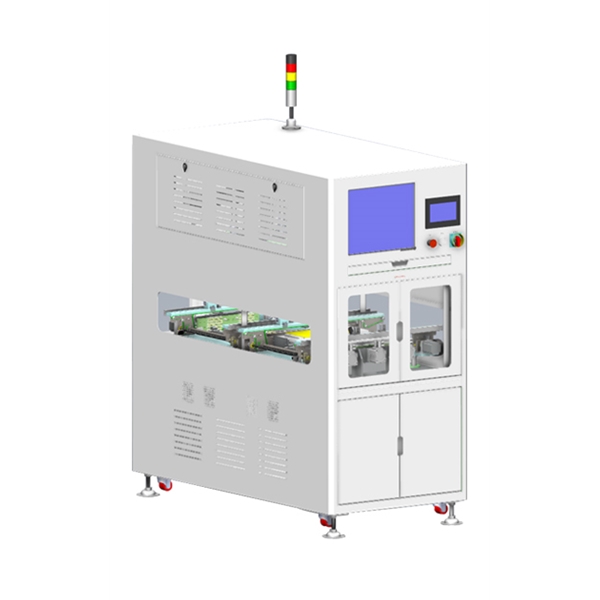

Equipment model | EA-2 |
source | 220V |
Gas source requirements | 0.4~0.6Mp |
Equipment weight | 400±40KG(Subject to physical condition) |
Equipment power | 500W(Other power-consuming equipment, such as computers, are additional) |
Overall size | L820*W1650*H1800 mm |
Track height | 900±30mm |
Cylinder diameter | Φ63、Φ100、Φ125 |
Press stroke | Specification A: 160±10mm Specification B: 200±10mm |
PCBA positioning | Photoelectric sensor |
PCBA safety protection and testing | Mechanical structure of photoelectric sensors |
Track widening | Automatic, manual |
PCBA size | L(50-400mm)*W(50-350mm) (Customizable) |
Equipment requirements for PCBA | PCBA board edge ≥ 3MM; components from the board edge ≥ 5mm |
PCBA weight | Standard equipment ≤ 3KG; (can be customised) |
Component height | TOP face ≤8CM BOTTOM face ≤2CM |
Transmission composition | Stepper motor belt track transmission |
Transmission speed | Adjustable |
Transmission direction | Left to right; Right to Left |
control mode | PLC+touch screen |
Connection of upstream and downstream equipment | SMEMA standard interface |
Abnormal alarm device | Three color light with built-in buzzer |
